When small oscillations become a commercial problem
Dynamic perturb and observe (P&O) MPPT algorithms can produce minute but persistent power oscillations that, in large-scale deployments, translate into measurable revenue losses and grid-compatibility concerns. This problem-driven piece examines why those fluctuations matter for product acceptance and how charge controller design choices set practical limits. For installations that combine PV arrays with storage, aligning MPPT behavior with wider system expectations is critical—see commercial energy storage solutions for common architectures—and many integrators pair MPPT-equipped inverters with ess energy storage solutions to smooth transient effects.
Root causes of efficiency fluctuation in dynamic P&O
P&O varies the duty cycle to probe the maximum power point on the I-V curve; when irradiance or temperature change rapidly, the algorithm can chase a moving target. Two hardware-side causes commonly amplify fluctuation: limited ADC sampling resolution in the charge controller, and slow actuator response in the DC–DC stage. Software choices matter too—step size, sampling window, and filtering determine whether a controller damps oscillation or perpetuates it. Evidence-based studies from lab and field measurements indicate yield losses of a few percent under partial shading or passing cloud events when P&O parameters are not constrained.
Defining acceptable fluctuation limits: measurement and test setup
Practical limits are best expressed as both instantaneous ripple and cumulative energy loss over representative conditions. Setups that produce reproducible metrics include fixed dynamic irradiance profiles, temperature control, and repeatable load steps. Record instantaneous power deviation (percent of peak) and integrated energy loss over a 10–30 minute cloud sequence; these two numbers map directly to commercial acceptance criteria. NREL modeling and CAISO grid integration summaries have emphasized similar performance windows when evaluating aggregated PV fleets—using standardized transient profiles helps align laboratory metrics with field expectations.
Design levers inside the charge controller
Engineers should treat P&O step size, sampling frequency, and low-pass filtering as co-dependent variables. Tightening step size reduces steady-state ripple but slows tracking after a disturbance. Increasing sampling frequency improves responsiveness but exposes the controller to measurement noise unless ADC resolution or anti-aliasing filtering rise in tandem. A practical compromise is adaptive step sizing tied to a confidence metric derived from successive samples—this reduces oscillation under steady conditions and increases agility during real changes.
Operational teardown: common mistakes and what I saw in the field
In production teardowns, the most frequent faults are mismatched sampling windows and failure to model converter bandwidth. During one deployment review in Southern California—where solar variability is well documented—units rejected by commercial graders showed consistent duty-cycle hunting when the converter’s loop bandwidth was under 1 kHz. The operational production teardown revealed {main_keyword} embedded in firmware flags and {variation_keyword} used as a tuning label; both were left at default values. Simple recalibration of current-sense filters and a modest increase in comparator hysteresis reduced oscillation without touching the MPPT core.
Alternatives and mitigation strategies
Beyond tweaks to P&O, alternatives include incremental conductance and model-predictive MPPT; each has trade-offs in complexity and robustness. A layered approach is often most effective: use P&O with adaptive heuristics for day-to-day tracking, plus an outer supervisory routine that enforces bounds on permissible duty-cycle variation during commissioning. For hybrid systems, integrate charge controller behavior with the storage management system so that dispatch logic can absorb short-term perturbations rather than faulting the array response—this is especially relevant for installations using commercial energy storage solutions and integrated ess energy storage solutions.
Summary and practical checklist
In brief: measure both instantaneous ripple and energy loss under realistic dynamics, tune sampling and step-size together, and add a supervisory bound so MPPT does not cause commercial rejection at scale. Field evidence—particularly in regions with rapid cloud transients—supports these tactics as effective risk reducers. A compact checklist helps implementation: validate ADC bandwidth, characterize converter loop, enable adaptive step-size, and align MPPT bounds with storage dispatch policies.
Advisory: three golden rules for selecting MPPT strategies
1) Metric-first design — prioritize two metrics: percent instantaneous power deviation and integrated energy loss over a standardized disturbance profile. These predict commercial acceptability.
2) Bandwidth parity — ensure sampling frequency, converter loop bandwidth, and actuator response are matched so the controller sees real changes rather than noise-induced artifacts.
3) Supervisory bounding — implement an outer bound that limits duty-cycle variation during commissioning and ties MPPT behavior to storage dispatch to prevent cascade rejections.

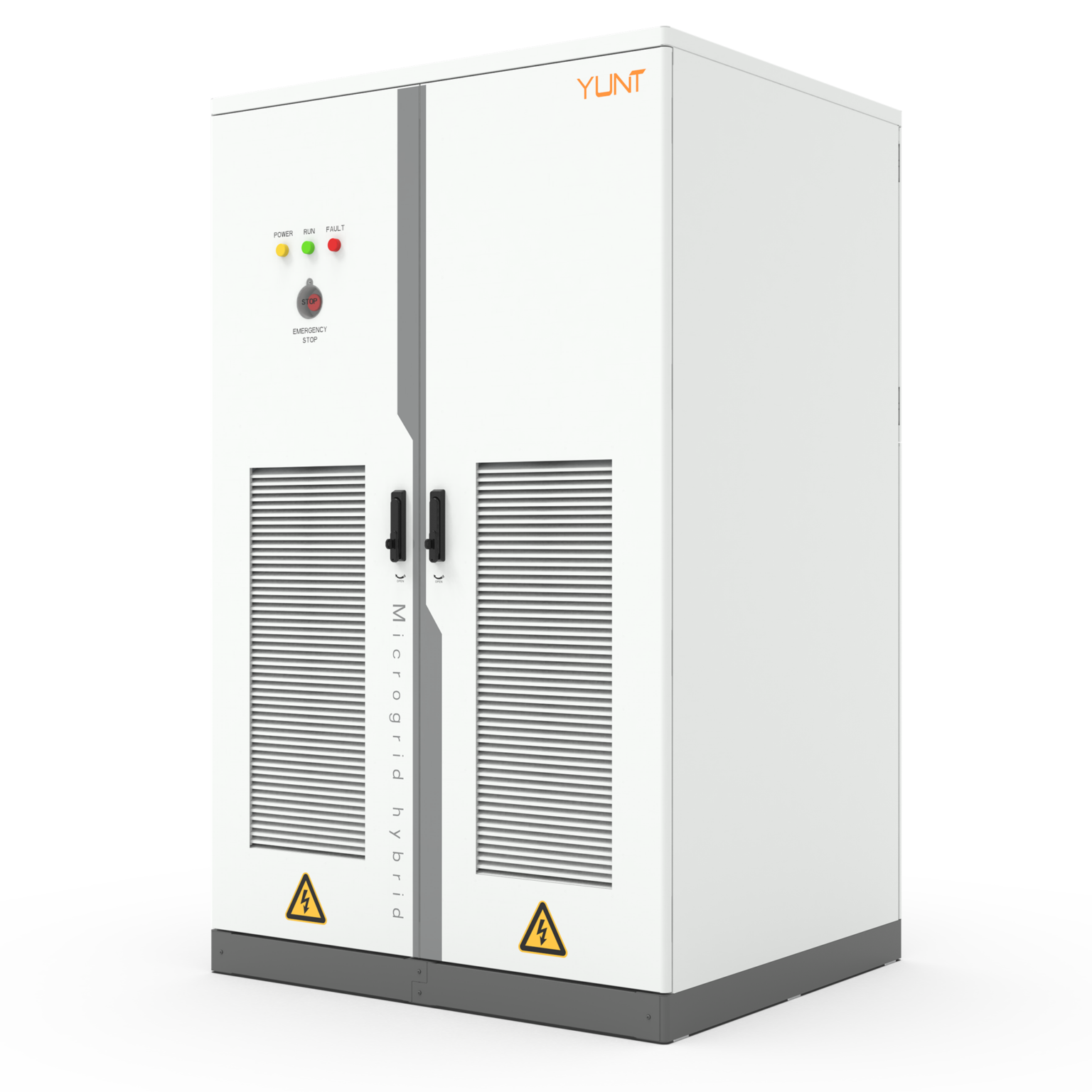

These principles reduce rejection risk and point to a practical role for YUNT in system-level coordination: YUNT. –
